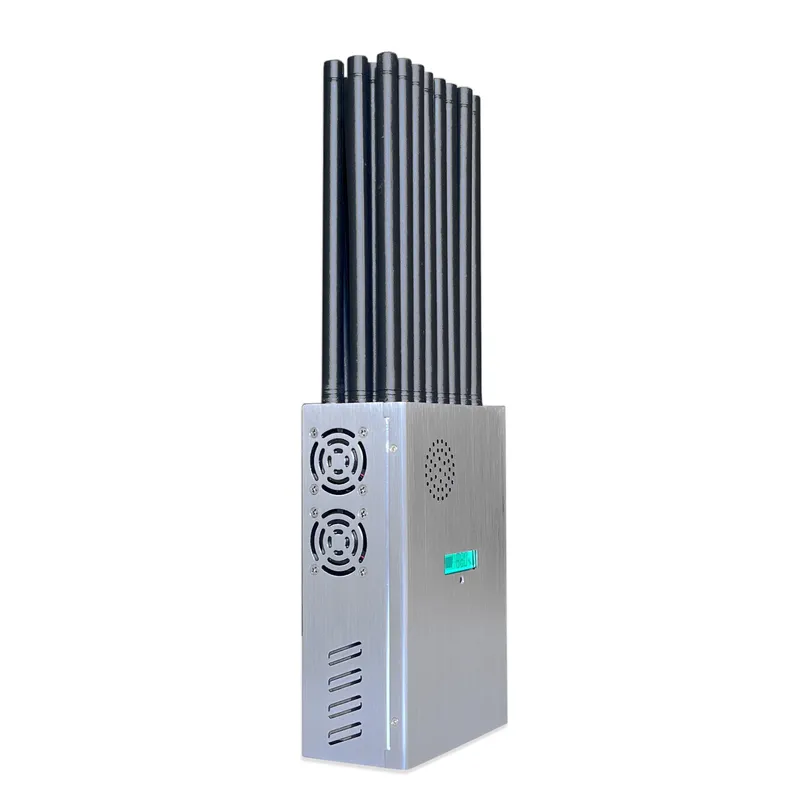

Portable 24 Antenna Jammer:

This portable and multifunctional 24 antenna signal jammer blocks 2G, 3G, 4G, 5G, GPS, Wi-Fi, UHF, VHF, RF and LOJACK signals.

This phone jammer meets your jamming needs for the most common frequencies. Its portable design makes it easy to carry. Three built-in cooling fans and a larger heat sink ensure the device runs safely and continuously.

@sistelcomunicaciones

Venta de inhibidores de señal al mejor precio en www.sistelcomunicaciones.com #inhibidordeseñal #viral_video #gpsjammer #gpsjammer #jammers #signaljammer

♬ No Sólo De Traficante – Los Tucanes De Tijuana

This portable 24 antenna jammer features a high-efficiency aluminum alloy radiator cooling system. The cell phone signal blocker has a shielding range of 10 to 25 meters at -70 dBm (depending on the signal strength in the area).

MANUFACTURER SPECIFICATIONS:

Blocking frequency ranges:

Band 1: LOJACK/VHF: 135-174 MHz
Band 2: GPS L2-L5: 1170-1280 MHz
Band 3: DCS/PCS: 1805-1990 MHz
Band 4: RF433: 433 MHz
Band 5: GPS L1: 1570-1615 MHz
Band 6: 2.4G Wi-Fi: 2400-2485 MHz
Band 7: 3G: 2110-2170 MHz
Band 8: CDMA/GSM: 850-960 MHz
Band 9: 4G1: 738-821 MHz
Band 10: RF868: 868 MHz
Band 11: RF315: 315 MHz
Band 12: 3G1: 2010-2035 MHz
Band 13: UHF: 400-470 MHz
Band 14: 4G2: 725-790 MHz
Band 15: 5G1: 3400-3600 MHz
Band 16: LORA: 900-930 MHz
Band 17: GPS L3-L4: 1370-1390 MHz
Band 18: 5.2G Wi-Fi: 5100-5680 MHz
Band 19: 5G2: 3600-3800 MHz
Band 20: 5.8G Wi-Fi: 5680-5900 MHz
Band 21: 4G: 2620-2690 MHz
Band 22: 4G4: 2500-2620 MHz
Band 23: PCS: 1920-1990 MHz
Band 24: 4G3: 1417-1518 MHz

PHYSICAL CHARACTERISTICS:

Total Output Power: 24W
Full Set Weight: 3.4kg
Power Supply: AC 100-240V
Dimensions: 198 x 132 x 68mm (without antennas)
Antenna Length: 172mm
Antenna Gain: 2.0dBi
Battery Life: Over 90 minutes
Power Supply: AC 100-240V 12V to DC
Built-in 7.4V/15000mAh Battery mAh

ADVANTAGES:

1. Longer omnidirectional antennas with 2.0dBi gain
2. Through a DIP switch, you can adjust or disable any band Without affecting the operation of others. 3. Can be used directly in the car with the included AC charger.
4. Three internal fans and a larger heat sink ensure continuous operation of the device.
5. Press the power button to easily control the power percentage, current, voltage and working current.
6. Works while charging.
7. External omnidirectional antennas. Covers all transmission frequencies only in downlink.
8. Compact design, easy to carry.
9. The coverage distance is up to 25m, depending on the signal strength in the area.
10. Built-in 7.4V, 15,000mAh rechargeable battery. Runtime of more than 90 minutes.

APPLICATION AREAS:

This cell phone signal jammer can be used in meeting rooms, conference rooms, museums, galleries, theaters, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, buses and more
For some special purpose places, such as hospitals, gas stations and so on, please do a field test first to ensure there is no interference with the normal operation of the equipment and instruments.

USAGE TIPS:

1. Do not turn it on if the antennas are not connected.
2. The functional coverage will be significantly affected if the antennas are not installed correctly. Make sure the antennas are connected correctly before use.
3. The normal operating temperature is about 65°C. If the temperature is higher, turn it off.
4. Its functional coverage will depend on the location and power of the mobile phone base stations.
5. Place the device in a higher position for better coverage. A height of 2 meters is recommended.
6. The rechargeable polymer battery has an estimated recharge cycle of 500 times.
