New Cell Phone Signal 26 Antennas Jammer – blocks WiFi6, FM

New 26 Antennas Jammer

The 26 Antennas Jammer is a blocker with 3W output power on each channel. It is specifically designed to block 3G, 4G, 5G, GPS L1, GPS L3-L4, GPS L2-L5, 2.4G, WIFI, 5.2G WIFI, 5.8G WIFI, Wi-Fi 6E, and FM radio frequency signals.

ADVANTAGES:

• 26-channel design, 3W per band.
• With remote on/off control.
• Total output power up to 66W, interference up to 70m (depending on signal strength in a given area).
• Built-in AC110-240V to 24V adapter, safe and easy to use.

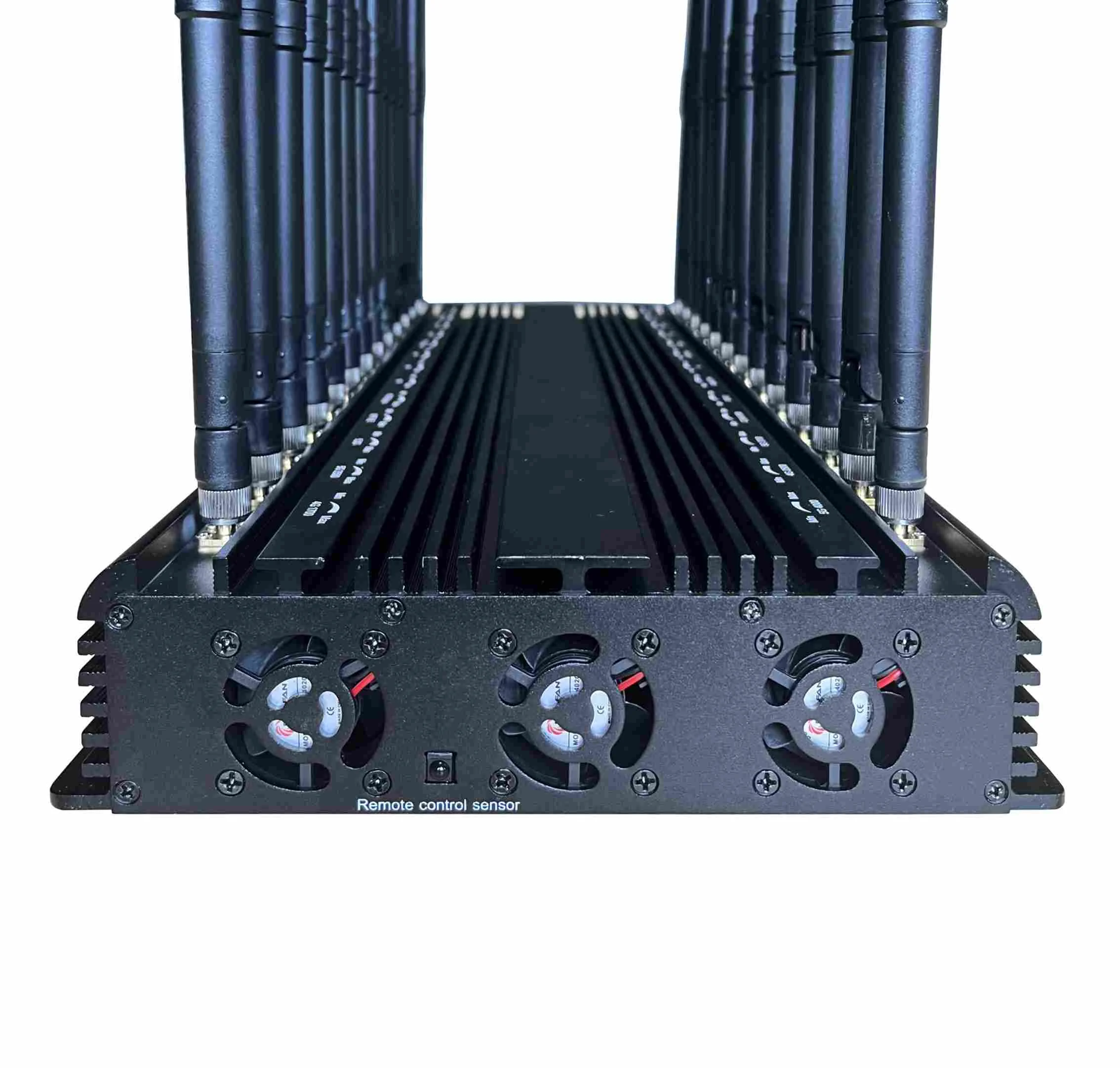

• Built-in 8-fan cooling system for uninterrupted operation.
• You can adjust or turn off any band without affecting the operation of the other bands.
• Independent module design with frequency source for each channel, easy maintenance.

PHYSICAL CHARACTERISTICS:

Total output power: 66 W
Complete set weight: 6 kg
Power supply: AC 100-240 V
Dimensions: 515 x 238 x 60 mm

APPLICATION AREAS:

This 26 Antennas Jammer can be used in meeting rooms, lecture halls, museums, galleries, theaters, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, buses, and more.
For some special-purpose locations, such as hospitals, gas stations, and more, please conduct a field test first to ensure there is no interference with the normal operation of your equipment and instruments.

Jamming range: Up to 70 m, the jamming radius depends on signal strength.

MANUFACTURER SPECIFICATIONS:

Blocking frequency ranges:

Band 1: DCS: 1805-1880 MHz
Band 2: GPS L2-L5: 1170-1390 MHz
Band 3: 2.4G Wi-Fi: 2400-2500 MHz
Band 4: 4G 2300: 2300-2400 MHz
Band 5: LOJACK/VHF: 135-174 MHz
Band 6: UHF: 400-470 MHz
Band 7: RF433: 433 MHz
Band 8: RF315: 315 MHz
Band 9: FM Radio: 80-108 MHz
Band 10: Wi-Fi 6E: 5925-6425 MHz
Band 11: 5.2GWIFI: 5100-5600MHz
Band 12: 5G 3500: 3300-3600 MHz
Band 13: 4G 1700: 1710-1780 MHz
Band 14: 5G 600: 617-698 MHz
Band 15: 5.8G WiFi: 5600-5900 MHz
Band 16: 5G 1500: 1427-1578 MHz
Band 17: PCS: 1920-2000 MHz
Band 18: 4G 2600: 2620-2690 MHz
Band 19: 4G 700/800: 725-821 MHz
Band 20: 3G: 2110-2180 MHz
Band 21: GSM/LORA: 900-960 MHz
Band 22: GPSL1: 1570-1580 MHz
Band 23: CDMA/868: 850-894 MHz
Band 24: 5G 3700: 3600-3900 MHz
Band 25: 4G 2500: 2500-2570 MHz
Band 26: 5G 4000: 3900-4200 MHz

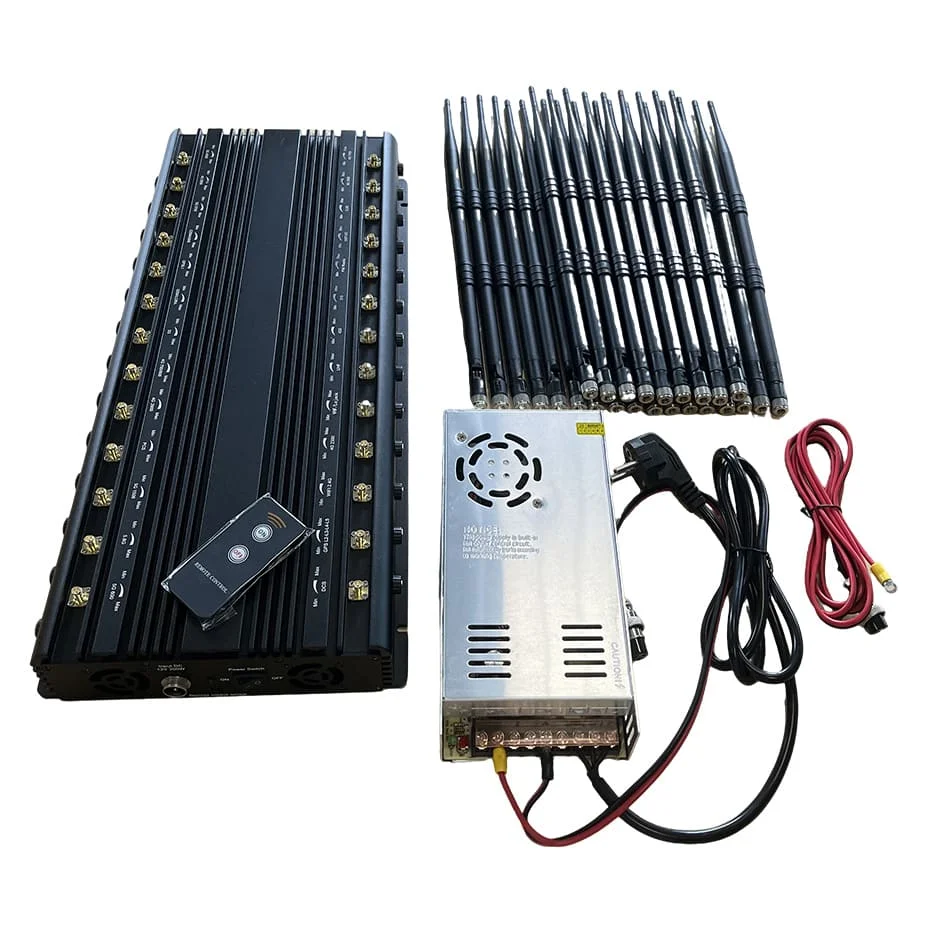

ACCESSORIES:

1 Jammer

1 Remote Control
1 AC Adapter

NOTICE: If you want to use this 26-antenna cell phone signal blocker in your car, please purchase a DC12V/24V to AC110-240V inverter. Power ≥260 watts.

USER TIPS:

1. Do not turn on the 26 Antennas Jammer if the antennas are not connected.
2. Functional coverage is significantly affected if the antennas are not installed correctly. Make sure the antennas are connected correctly before use.

3. The normal operating temperature is approximately 65°C. If the temperature is higher, turn it off.
4. Functional coverage will depend on the location and power of the cell phone base stations.
5. Place the 26-antenna cell phone signal blocker in a higher position for better coverage. A height of 2 meters is recommended.
